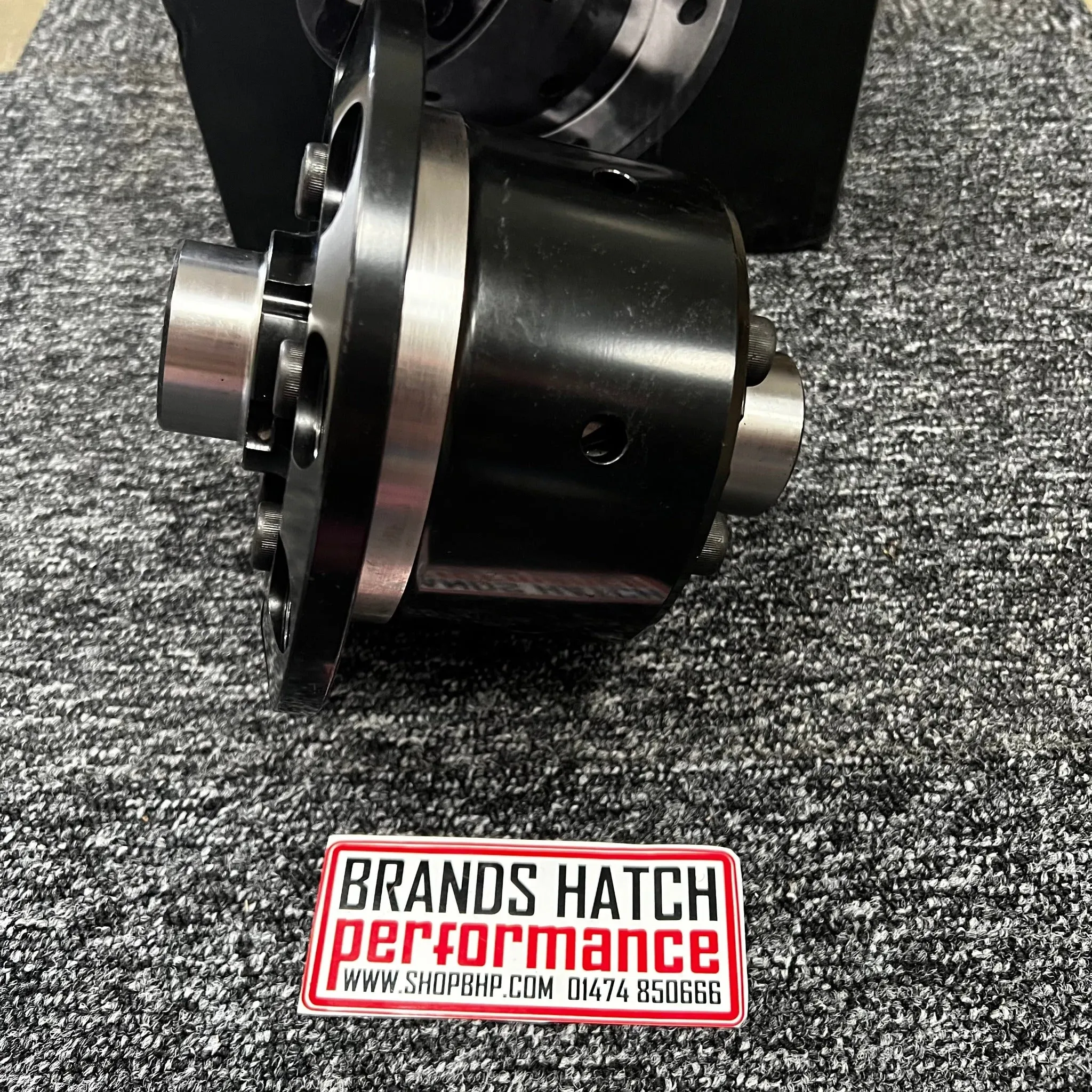

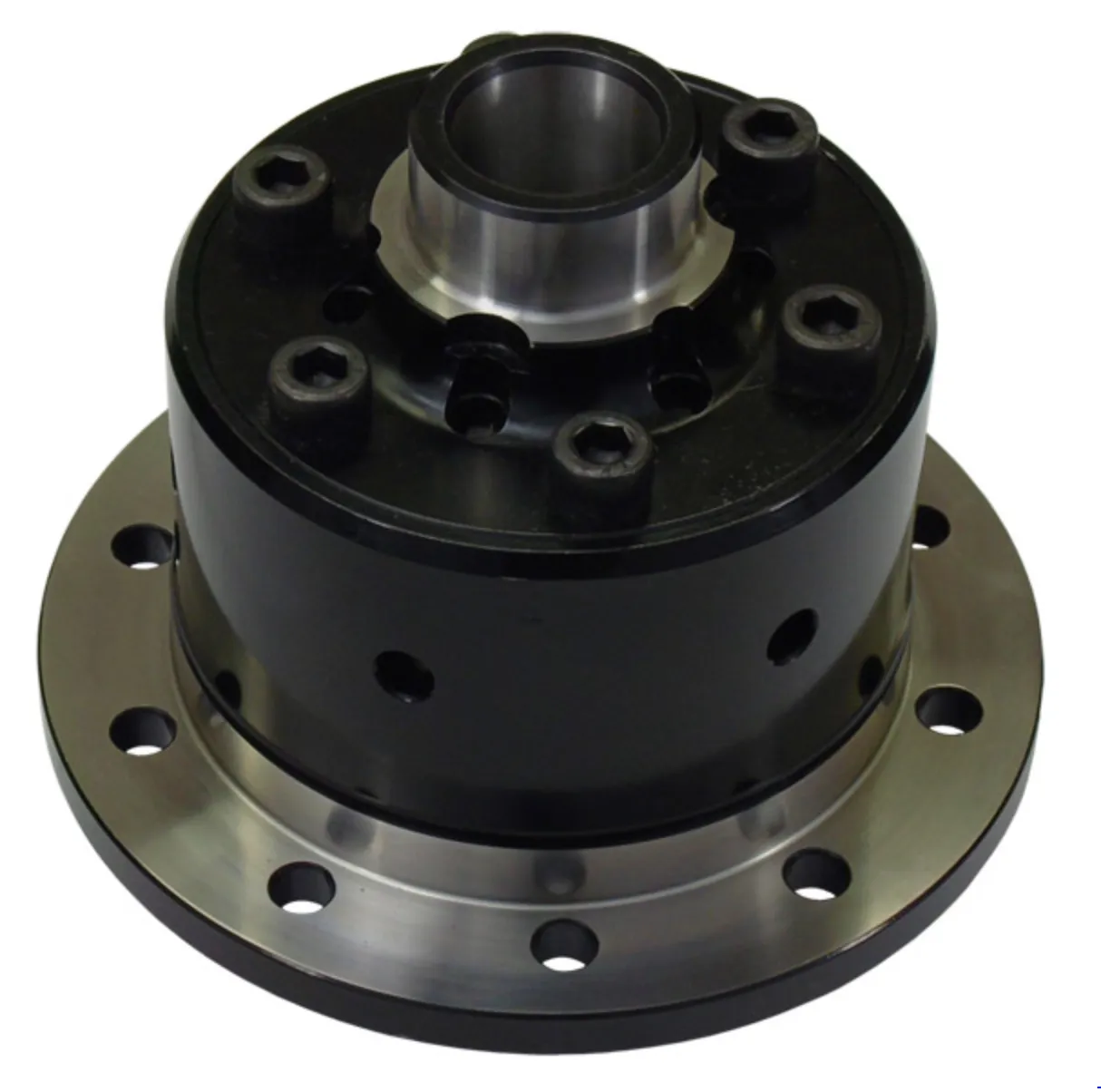

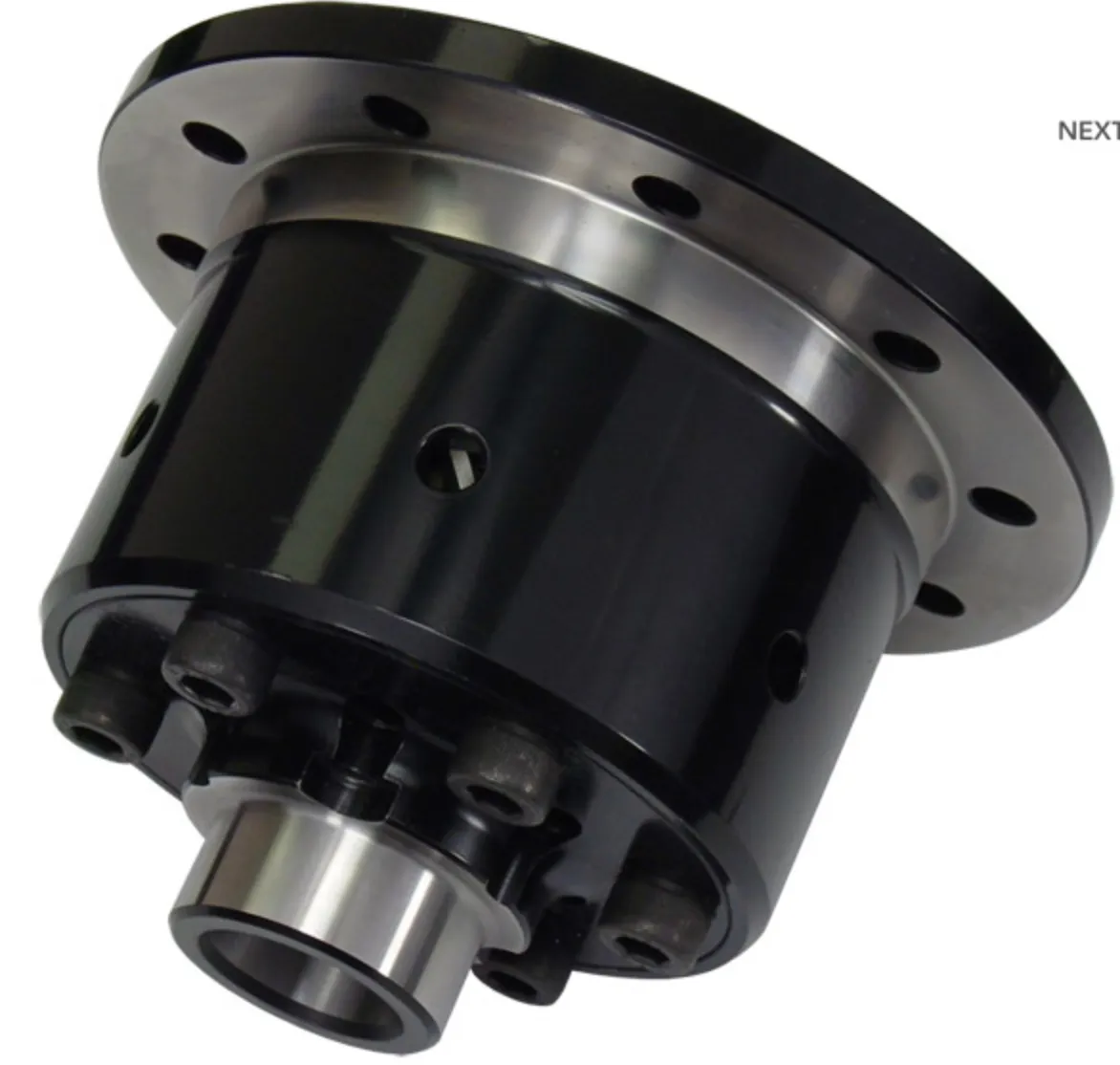

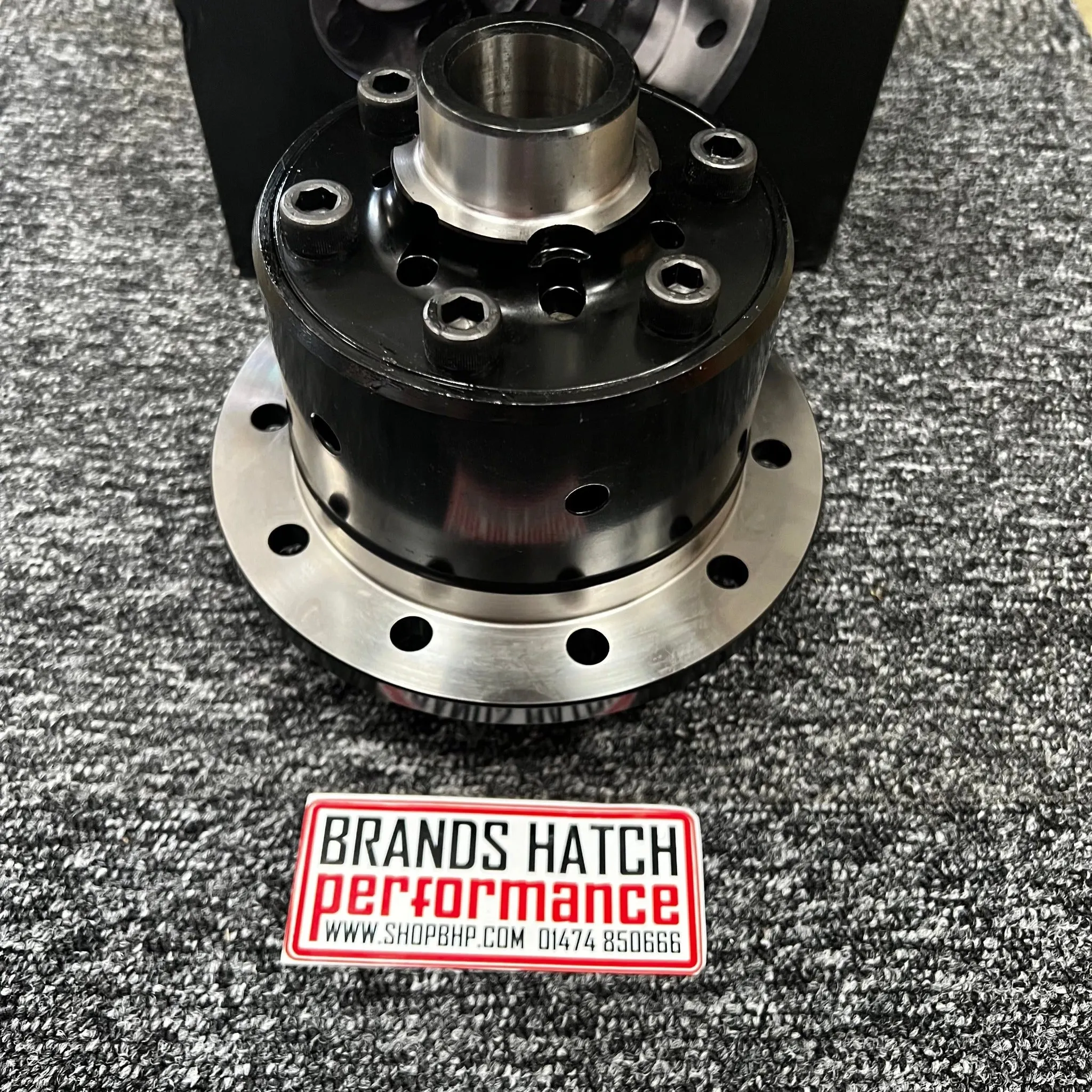

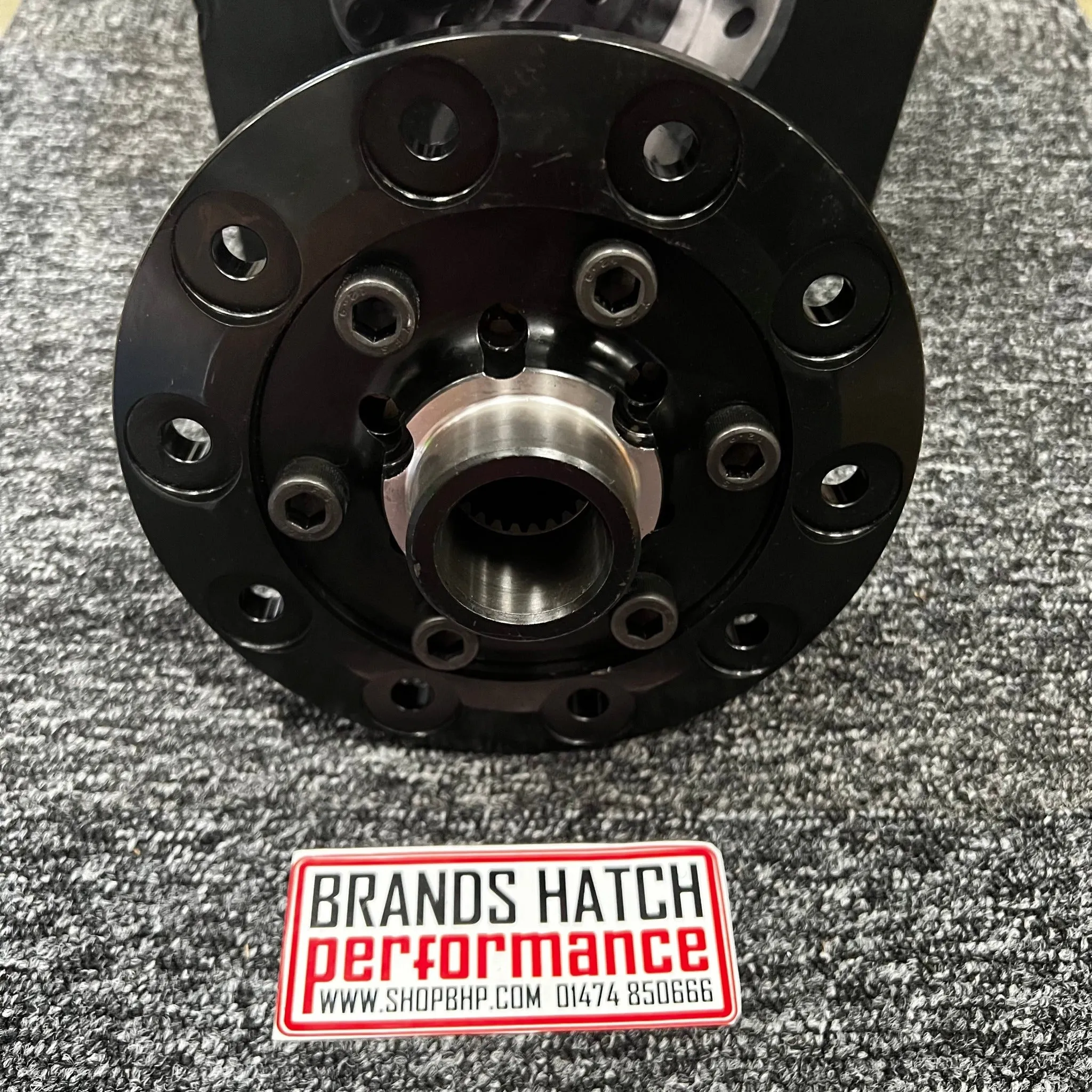

Blackline Land Rover / Range Rover / Discovery Helical LSD

Suits:-

• Land Rover (24 spline shafts)

• Range Rover (24 spline shafts)
• Discovery (24 spline shafts)

For 5 Speed Vehicles:-

• Defender 90 :- Suits all diffs, but if upgrading from 10 spline you will require 24 spline shafts.
• Defender 110 Front:- Suits all diffs, but if upgrading from 10 spline you will require 24 spline shafts.
• Defender 110 Rear:- 2002 onwards, but will require a P38 spacer to fit.
• Discovery:- Suits all diffs, but if upgrading from 10 spline you will require 24 spline shafts. If the shafts are integral you may require CV modified flanges and cv joints.
• Range Rover Classic:- Suits all diffs, but if upgrading from 10 spline you will require 24 spline shafts. If the shafts are integral you may require CV modified flanges and cv joints.
• P38 Range Rover:- Suits all diffs, but will require a P38 spacer to fit.

Please note this is NOT suitable for the salisbury axle.

Please Check Fitment is correct before purchasing!

Helical LSD Advantages:-

• Equal rotational speed to both wheels
• Torque distributed according to traction
• Minimal service requirements - no clutches
• Quick reaction compared to viscous LSDs
• Gentle and progressive engagement, low noise
• Easily controlled power take-off and drifting
• Gears and body manufactured from 8620 alloy steel
• Direct replacement into stock differential

Blackline Helical LSD's - How They Work

The Blackline helical LSD's are torque biasing, that is they distribute torque between the wheels, loading more torque towards the wheel with the best traction thus improving performance and driveabitily. Especially in low grip situations.

The helical gearing manages the distribution of friction within the LSD. When torque is applied to the helical gear system it creates force that pushes the gear into the differential body, thus creating friction. Increases of torque, increases the thrust force directly proprotional to the amount of torque. This allows the Blackline LSD to cope with considerable traction imbalance even under heavy power conditions, as would be the case on exiting a powered up corner. But at low torque conditions the LSD can differentiate quietly and smoothly, thus making the differential very suitable for normal road driving. The Blackline LSD uses the popular parallel axis helical geared configuration optimised for even load distribution. They are designed with a torque bias of 5:1 this means that if  one wheel loses traction then the wheel with the most grip can receive five times as much torque as the wheel that is slipping. However, five times zero is still zero, so all these helical LSD's work best when both wheels are 'planted' and some traction is still available on the slipping wheel. In practice this is rarely a problem as there is always some 'drag' on the slipping wheel, however some drivers expertly use left foot braking to partially lock the spinning wheel.

Note - Helical LSD's work especially well when combined with modern anti-lock braking systems.

You are buying the Assembled differential unit only, no bearings, gears or gaskets will be included.

International Postage will need to be quoted. Please fill out the form on our contact us page.
